Solar Equipment

• Application
• Other, Protection and distribution in solar PV systems

• Cable Length
• Customizable as per requirement

• Color
• Transparent/Clear (enclosure)

• Dimension (L*W*H)
• Depends on model; typically 250x200x100mm

• Efficiency
• >98%

• Features
• IP65 Protection, UV Stabilized, Pre-wired, Surge Protection, Isolator Switch, Compact Design

• Input Voltage
• DC Up to 1000V; AC up to 415V

• Installation Type
• Other, Wall Mounted/Surface Mounted

• Maintenance Type
• Minimal Maintenance

• Material
• Polycarbonate Enclosure, High Quality Electrical Components

• Max System Voltage
• 1000V DC (DCDB); 415V AC (ACDB)

• Max Voltage
• DCDB: 1000V DC; ACDB: 415V AC

• Operating Temperature
• -10C to 60C

• Output Voltage
• DC: Upto 1000V, AC: Upto 415V

• Power
• Up to 1000V DC; AC up to 415V

• Product Type

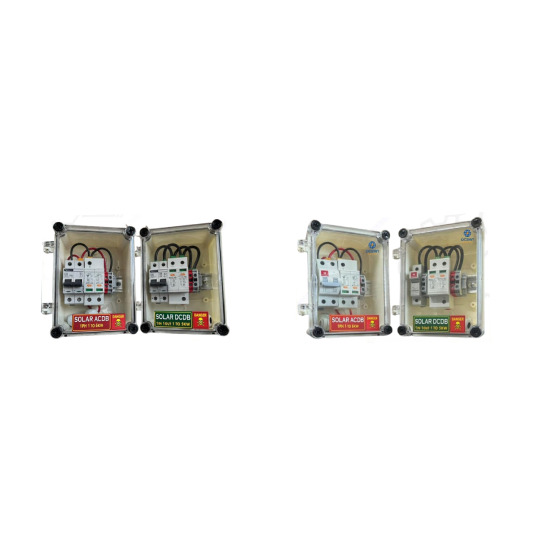

• Other, Solar ACDB and DCDB Combo

• Size
• Standard and Custom Options Available

• Switch Mode
• Other, Manual/Automatic Switches

• Type Of Technology
• Other, Electromechanical Protection Unit

• Weight
• 1.5 to 2.5 kg depending on model

• Application
• Other, Solar Power Distribution for Homes and Small Businesses

• Cable Length
• As per site requirement

• Color
• Transparent/White/Grey

• Dimension (L*W*H)
• Typically 250mm x 200mm x 110mm

• Efficiency
• >98% (Component efficiency)

• Features
• IP65 Protection, Prewired, Easy Installation, Safety with MCB/ELCB

• Input Voltage
• 230V AC

• Installation Type
• Other, Wall Mounted

• Maintenance Type
• Low Maintenance

• Material
• Polycarbonate/ABS Enclosure with electrical components

• Max System Voltage
• 300V AC

• Max Voltage
• 300V AC

• Operating Temperature
• -10C to +55C

• Output Voltage
• 230V AC

• Power
• Up to 5 kW (typical for single phase systems)

• Product Type

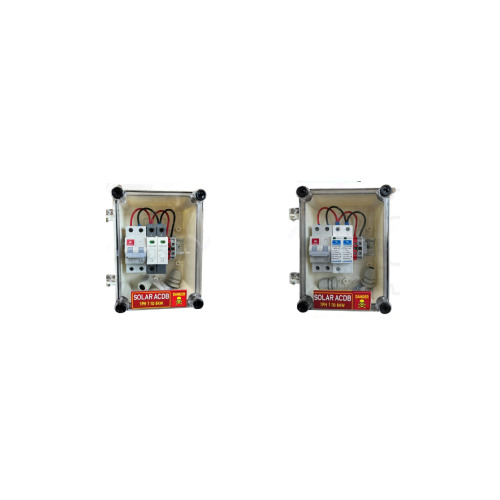

• Other, 1 Phase Solar ACDB

• Size
• Compact

• Switch Mode
• Other, Manual/MCB/Isolator Switches

• Type Of Technology
• Other, Distribution Board Technology

• Weight
• 2-3 kg (approx.)

• Application
• Other, Solar Power Distribution and Protection

• Cable Length
• As per requirement

• Color
• Grey/Clear

• Dimension (L*W*H)
• Typically 300 x 300 x 150 mm (can vary as per model)

• Efficiency
• High operational efficiency, >98%

• Features
• MCCB/MCB, SPD (Surge Protection Device), Connector Blocks, IP65/IP66 enclosure, safety interlocks

• Input Voltage
• 415V AC

• Installation Type
• Other, Wall Mountable

• Maintenance Type
• Low maintenance

• Material
• Polycarbonate/ABS Enclosure

• Max System Voltage
• 1000V AC

• Max Voltage
• 440V AC

• Operating Temperature
• -10C to +55C

• Output Voltage
• 415V AC

• Power
• Suitable for Solar Inverter Output (typically up to 100kW or as specified)

• Product Type

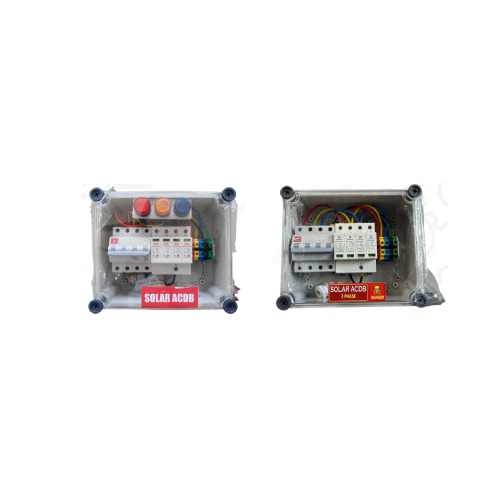

• Other, 3 Phase Solar ACDB

• Size
• Standard/Customized

• Switch Mode
• Other, Manual/Automatic (depending on configuration)

• Type Of Technology
• Other, Protection & Switching Device for Solar Power

• Weight
• 3-5 kg (approximate)

• Application
• Other, Solar PV String Protection and Distribution

• Cable Length
• Customizable as per requirement

• Color
• Transparent/White

• Dimension (L*W*H)
• 250mm x 200mm x 100mm (Approx.)

• Efficiency
• High protection efficiency

• Features
• Weatherproof, UV Resistant, Prewired, Ready to Install

• Input Voltage
• Up to 1000V DC

• Installation Type
• Other, Wall Mounted

• Maintenance Type
• Low Maintenance

• Material
• Polycarbonate (PC) Enclosure, Copper Wiring

• Max System Voltage
• 1000V DC

• Max Voltage
• 1000V DC

• Operating Temperature
• -10C to +55C

• Output Voltage
• Up to 1000V DC

• Power
• Up to 1000V DC

• Product Type
• Other, 1 In 1 Out Solar DCDB

• Size
• Standard/Custom

• Switch Mode
• Other, Manual Disconnector/Isolator

• Type Of Technology
• Other, PV Solar Protection

• Weight
• 1.2 kg (Approx.)

• Application
• Other, Used for Solar Power Plant Protection and Isolation (DC side)

• Cable Length
• Customizable as per site requirements

• Color
• Transparent/White

• Dimension (L*W*H)
• 270mm x 220mm x 100mm (approximate, may vary)

• Efficiency
• 99% (distribution efficiency)

• Features
• Weatherproof enclosure, UV resistant, Pre-wired for easy installation, Inbuilt surge protection device (SPD), Overcurrent protection with fuses

• Input Voltage
• Up to 1000V DC

• Installation Type
• Other, Wall Mounted/Surface Mounted

• Maintenance Type
• Low maintenance; periodic visual inspection required

• Material
• Polycarbonate/ABS enclosure, Copper busbars, Flame-retardant internal components

• Max System Voltage
• 1000V DC

• Max Voltage
• 1000V DC

• Number of Cells
• Not applicable for DCDB

• Operating Temperature
• -25C to +55C

• Output Voltage
• Up to 1000V DC

• Power
• Up to 1000V DC (varies as per model)

• Product Type
• Other, 2 In 2 Out Solar DCDB (Direct Current Distribution Box)

• Size
• Typically medium/standard for rooftop PV systems

• Switch Mode
• Other, Manual with DC Isolator Switch

• Type Of Technology
• Other, Solar Photovoltaic BOS (Balance of System)

• Weight
• 2.5 kg (approximate)

• Application
• Other, Solar photovoltaic (PV) power plants, Rooftop solar installations, Off-grid and grid-connected systems

• Cable Length
• Customizable as per requirement

• Color
• White/transparent/grey (enclosure color may vary)

• Dimension (L*W*H)
• 250 x 200 x 100 mm (can vary as per design)

• Efficiency
• >98% (related to internal loss, highly efficient)

• Features
• IP65 weatherproof enclosure, UV resistant, Shock proof, Pre-wired for easy installation, Inbuilt surge protection device (SPD), MC4 compatible entries, Modular design

• Input Voltage
• Up to 1000V DC

• Installation Type
• Other, Wall mounting/Surface mounting

• Maintenance Type
• Low maintenance, periodic inspection recommended

• Material
• Polycarbonate/ABS enclosure with copper/aluminium busbars

• Max System Voltage
• 1000V DC

• Max Voltage
• 1000V DC

• Number of Cells
• N/A (not applicable for DCDB)

• Operating Temperature
• -25C to +55C

• Output Voltage
• Up to 1000V DC

• Power
• Suitable for solar PV systems up to 1000V DC

• Product Type
• Other, 2 In 2 Out Solar DCDB (Direct Current Distribution Box)

• Size
• Standard (custom sizing available)

• Switch Mode
• Other, Manual switch/MCB/Isolator switch

• Type Of Technology
• Other, String array protection with integrated DC isolators and fuse holders

• Weight
• Approx. 0.8-2 kg depending on configuration
